| مواد | |
|---|---|
| کد | |
| فشار (حداکثر) بار | |
| سرعت لغزش (حداکثر) - متر بر ثانیه | |
| دما (حداکثر) درجه سانتیگراد |

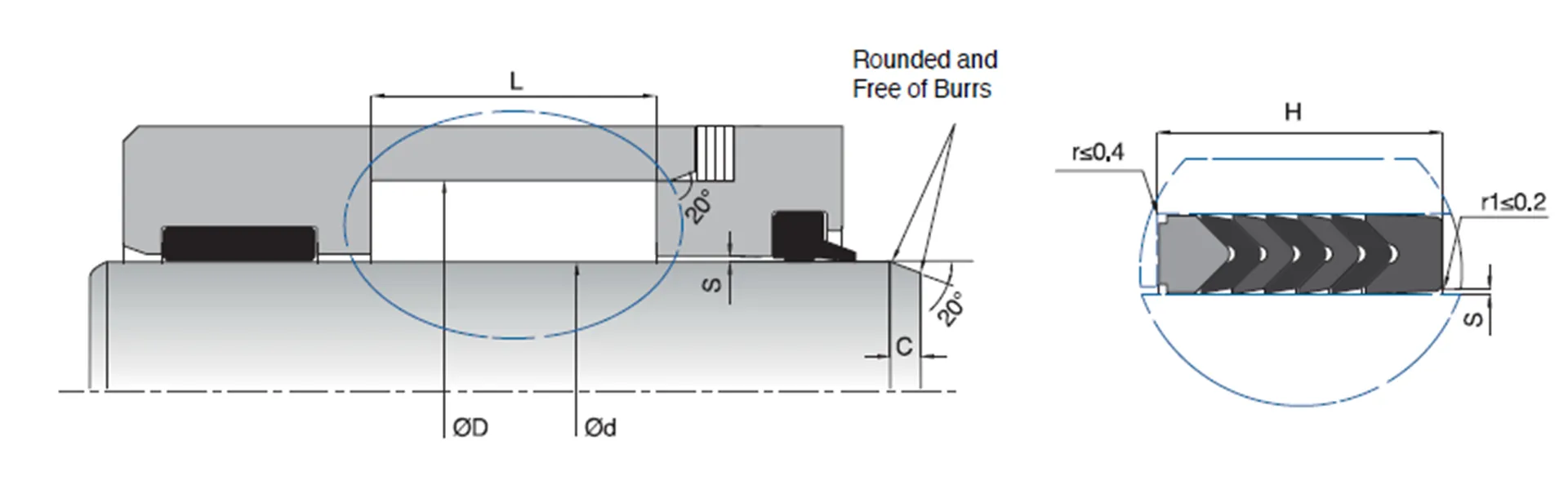

پکینگ میله K01 یک مجموعه آببندی میله تکعمله است که شامل یک حلقه هدر، سه حلقه الاستومر پارچهای، دو حلقه الاستومر و یک حلقه پشتی الاستومر پارچهای است.
| Product | d (f8) | D (H9) | L (+0.2/-0) | H | Thickness | EC | Material | Kastaş Code |
|---|
| K01-008 | 8 | 18 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000064 |
| K01-010 | 10 | 20 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000065 |
| K01-012 | 12 | 22 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000068 |
| K01-013 | 13.5 | 25 | 16.5 | 16.5 | 5.75 | - | 3 | 110000070 |
| K01-014 | 14 | 24 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000071 |
| K01-015 | 15 | 25 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000074 |
| K01-015/1 | 15 | 32 | 25 | 25 | 8.5 | - | 3 | 110000075 |
| K01-016 | 16 | 26 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000076 |
| K01-018 | 18 | 28 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000080 |
| K01-018/1 | 18 | 32 | 23.5 | 23.5 | 7 | - | 3 | 110000082 |
| K01-020 | 20 | 30 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000085 |
| K01-020/1 | 20 | 32 | 22.5 | 22.5 | 6 | 3 | 5 | 110000089 |
| K01-022 | 22 | 32 | 18.5 | 18.5 | 5 | 2.5 | 3 | 110000094 |
| K01-022/1 | 22 | 34 | 22.5 | 22.5 | 6 | 3 | 5 | 110000101 |
| K01-025 | 25 | 37 | 22.5 | 22.5 | 6 | 3 | 5 | 110000105 |
| K01-025/1 | 25 | 40 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000107 |
| K01-028 | 28 | 40 | 22.5 | 22.5 | 6 | 3 | 5 | 110000111 |
| K01-028/1 | 28 | 43 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000114 |
| K01-030 | 30 | 42 | 22.5 | 22.5 | 6 | 3 | 5 | 110000116 |
| K01-030/1 | 30 | 45 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000120 |
| K01-030/2 | 30 | 50 | 37 | 37 | 10 | - | 5 | 110000122 |
| K01-032 | 32 | 44 | 22.5 | 22.5 | 6 | 3 | 5 | 110000124 |
| K01-032/1 | 32 | 47 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000129 |
| K01-032/2 | 32 | 45 | 22.5 | 22.5 | 6.5 | 3 | 5 | 110000132 |
| K01-035 | 35 | 47 | 22.5 | 22.5 | 6 | 3 | 5 | 110000133 |
| K01-035/1 | 35 | 50 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000137 |
| K01-036 | 36 | 48 | 22.5 | 22.5 | 6 | 3 | 5 | 110000142 |
| K01-036/1 | 36 | 51 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000144 |
| K01-040 | 40 | 52 | 22.5 | 22.5 | 6 | 3 | 5 | 110000146 |
| K01-040/1 | 40 | 55 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000151 |
| K01-040/2 | 40 | 55 | 25 | 25 | 7.5 | - | 5 | 110000154 |
| K01-040/3 | 40 | 56 | 22.5 | 22.5 | 8 | 3 | 5 | 110000155 |
| K01-042 | 42 | 54 | 22.5 | 22.5 | 6 | 3 | 5 | 110000157 |
| K01-042/1 | 42 | 57 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000158 |
| K01-045 | 45 | 60 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000159 |
| K01-045/1 | 45 | 65 | 22.5 | 22.5 | 10 | 4 | 5 | 110000169 |
| K01-045/2 | 45 | 55 | 22 | 22 | 5 | - | 5 | 110000178 |
| K01-045/3 | 45 | 62 | 26 | 26 | 8.5 | - | 5 | 110000183 |
| K01-047 | 47 | 65 | 33 | 33 | 9 | - | 5 | 110000184 |
| K01-048 | 48 | 63 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000185 |
| K01-050 | 50 | 65 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000186 |
| K01-050/1 | 50 | 70 | 30 | 30 | 10 | 4 | 5 | 110000192 |
| K01-055 | 55 | 70 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000197 |
| K01-055/1 | 55 | 75 | 30 | 30 | 10 | 4 | 5 | 110000201 |
| K01-055/2 | 55 | 67 | 24 | 24 | 6 | 3 | 5 | 110000209 |
| K01-056 | 56 | 71 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000212 |
| K01-056/1 | 56 | 76 | 37 | 37 | 10 | 5 | 5 | 110000219 |
| K01-056/2 | 56 | 72 | 46 | 46 | 8 | 6 | 5 | 110000221 |
| K01-060 | 60 | 75 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000223 |
| K01-060/1 | 60 | 80 | 37 | 37 | 10 | 5 | 5 | 110000229 |
| K01-060/3 | 60 | 85 | 37 | 37 | 12.5 | 5 | 7.5 | 110000234 |
| K01-063 | 63 | 78 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000236 |
| K01-063/1 | 63 | 83 | 37 | 37 | 10 | 5 | 5 | 110000241 |
| K01-063/2 | 63.5 | 78 | 40 | 40 | 7.25 | - | 5 | 110000244 |
| K01-065 | 65 | 80 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000245 |
| K01-065/1 | 65 | 85 | 40 | 40 | 10 | 5 | 5 | 110000250 |
| K01-070 | 70 | 85 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000252 |
| K01-070/1 | 70 | 90 | 40 | 40 | 10 | 5 | 5 | 110000262 |
| K01-075 | 75 | 90 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000270 |
| K01-075/1 | 75 | 95 | 40 | 40 | 10 | 5 | 5 | 110000275 |
| K01-075/2 | 75 | 87 | 25 | 25 | 6 | 3 | 5 | 110000278 |
| K01-075/3 | 75 | 100 | 34 | 34 | 12.5 | 4 | 7.5 | 110000279 |
| K01-078 | 78 | 100 | 35 | 35 | 11 | - | 7.5 | 110000283 |
| K01-080 | 80 | 95 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000284 |
| K01-080/1 | 80 | 100 | 40 | 40 | 10 | 5 | 5 | 110000293 |
| K01-085 | 85 | 100 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000302 |
| K01-085/1 | 85 | 105 | 40 | 40 | 10 | 5 | 5 | 110000306 |
| K01-085/2 | 85 | 95 | 22.5 | 22.5 | 5 | 3 | 3 | 110000308 |
| K01-090 | 90 | 105 | 22.5 | 22.5 | 7.5 | 3 | 5 | 110000309 |
| K01-090/1 | 90 | 110 | 40 | 40 | 10 | 5 | 5 | 110000317 |
| K01-090/2 | 90 | 110 | 26 | 26 | 10 | - | 5 | 110000323 |
| K01-090/3 | 90 | 110 | 22.5 | 22.5 | 10 | - | 5 | 110000326 |
| K01-095 | 95 | 120 | 50 | 50 | 12.5 | - | 7.5 | 110000328 |
| K01-100 | 100 | 115 | 30 | 30 | 7.5 | 4 | 5 | 110000331 |
| K01-100/1 | 100 | 120 | 40 | 40 | 10 | 5 | 5 | 110000336 |
| K01-105 | 105 | 120 | 30 | 30 | 7.5 | 4 | 5 | 110000344 |
| K01-105/1 | 105 | 125 | 40 | 40 | 10 | 5 | 5 | 110000346 |
| K01-105/2 | 105 | 130 | 40 | 40 | 12.5 | - | 7.5 | 110000348 |
| K01-110 | 110 | 125 | 30 | 30 | 7.5 | 4 | 5 | 110000349 |
| K01-110/1 | 110 | 130 | 40 | 40 | 10 | 5 | 5 | 110000359 |
| K01-115 | 115 | 130 | 30 | 30 | 7.5 | 4 | 5 | 110000363 |
| K01-115/1 | 115 | 140 | 46 | 46 | 12.5 | 6 | 7.5 | 110000365 |
| K01-115/2 | 115 | 135 | 30 | 30 | 10 | 3.5 | 5 | 110000368 |
| K01-120 | 120 | 140 | 49 | 49 | 10 | 6.5 | 5 | 110000369 |
| K01-120/1 | 120 | 145 | 46 | 46 | 12.5 | 6 | 7.5 | 110000371 |
| K01-125 | 125 | 140 | 34 | 34 | 7.5 | 5 | 5 | 110000375 |
| K01-125/1 | 125 | 150 | 46 | 46 | 12.5 | 6 | 7.5 | 110000378 |
| K01-130 | 130 | 155 | 42.5 | 42.5 | 12.5 | - | 7.5 | 110000385 |
| K01-135 | 135 | 160 | 55 | 55 | 12.5 | 6 | 7.5 | 110000387 |
| K01-135/1 | 135 | 160 | 40 | 40 | 12.5 | - | 7.5 | 110000389 |
| K01-140 | 140 | 155 | 34 | 34 | 7.5 | 4.5 | 7.5 | 110000390 |
| K01-140/1 | 140 | 165 | 46 | 46 | 12.5 | 6 | 7.5 | 110000395 |
| K01-140/2 | 140 | 160 | 32 | 32 | 10 | 4 | 5 | 110000400 |
| K01-140/3 | 140 | 170 | 60 | 60 | 15 | 7.5 | 7.5 | 110000406 |
| K01-150 | 150 | 170 | 40 | 40 | 10 | 5 | 5 | 110000407 |
| K01-150/1 | 150 | 180 | 60 | 60 | 15 | 7.5 | 7.5 | 110000415 |
| K01-160 | 160 | 180 | 40 | 40 | 10 | 5 | 7.5 | 110000419 |
| K01-160/1 | 160 | 190 | 60 | 60 | 15 | 7.5 | 7.5 | 110000424 |
| K01-160/2 | 160 | 175 | 34 | 34 | 7.5 | 3.5 | 5 | 110000428 |
| K01-165 | 165 | 195 | 50.5 | 50.5 | 15 | 6 | 7.5 | 110000430 |
| K01-170 | 170 | 190 | 40 | 40 | 10 | 5 | 5 | 110000434 |
| K01-180 | 180 | 200 | 40 | 40 | 10 | 5 | 5 | 110000435 |
| K01-180/1 | 180 | 210 | 60 | 60 | 15 | 7.5 | 7.5 | 110000439 |
| K01-190 | 190 | 220 | 42 | 42 | 15 | 5.5 | 7.5 | 110000447 |
| K01-200 | 200 | 220 | 40 | 40 | 10 | 5 | 5 | 110000456 |
| K01-200/1 | 200 | 230 | 60 | 60 | 15 | 7.5 | 7.5 | 110000460 |
| K01-210 | 210 | 240 | 50 | 50 | 15 | 6.9 | 7.5 | 110000466 |
| K01-215 | 215 | 245 | 41 | 41 | 15 | - | 7.5 | 110000473 |
| K01-220 | 220 | 240 | 40 | 40 | 10 | 5 | 5 | 110000475 |
| K01-230 | 230 | 260 | 58 | 58 | 15 | 7.25 | 7.5 | 110000477 |
| K01-240 | 240 | 270 | 60 | 60 | 15 | 7.5 | 7.5 | 110000480 |
| K01-240/1 | 240 | 260 | 46 | 46 | 10 | 5 | 5 | 110000485 |
| K01-250 | 250 | 270 | 42 | 42 | 10 | 6 | 5 | 110000486 |
| K01-260 | 260 | 290 | 60 | 60 | 15 | 7.5 | 7.5 | 110000488 |
| K01-300 | 300 | 330 | 60 | 60 | 15 | 7.5 | 7.5 | 110000498 |
| K01-310 | 310 | 340 | 60 | 60 | 15 | 7.5 | 7.5 | 110000502 |
| K01-320 | 320 | 350 | 60 | 60 | 15 | 7.5 | 7.5 | 110000503 |
| K01-320/1 | 320 | 360 | 46 | 46 | 20 | - | 10 | 110000508 |
| K01-330 | 330 | 360 | 60 | 60 | 15 | 7.5 | 7.5 | 110000511 |
| K01-360 | 360 | 390 | 60 | 60 | 15 | 7.5 | 7.5 | 110000514 |
| K01-360/1 | 360 | 400 | 55 | 55 | 20 | 7.5 | 10 | 110000515 |
| K01-370 | 370 | 400 | 55 | 55 | 15 | 7.5 | 7.5 | 110000524 |
| K01-400 | 400 | 440 | 65 | 65 | 20 | 9 | 10 | 110000525 |
| K01-400/1 | 400 | 430 | 46 | 46 | 15 | 5.5 | 7.5 | 110000531 |
| K01-420 | 420 | 460 | 80 | 80 | 20 | 10 | 10 | 110000534 |
| K01-440 | 440 | 480 | 68 | 68 | 20 | 9.5 | 10 | 110000538 |
| K01-450 | 450 | 490 | 65 | 65 | 20 | 8 | 10 | 110000540 |
| مواد | |
|---|---|
| کد | |
| فشار (حداکثر) بار | |
| سرعت لغزش (حداکثر) - متر بر ثانیه | |
| دما (حداکثر) درجه سانتیگراد |
