برف‌پاک‌کن‌های K705 PTFE از یک حلقه برف‌پاک‌کن PTFE و دو حلقه اورینگ تشکیل شده‌اند. طراحی حلقه برف‌پاک‌کن دارای دو لبه در سطح تماس است و عملکرد برف‌پاک‌کنی فوق‌العاده‌ای را ارائه می‌دهد. K705 می‌تواند فواصل دمایی وسیع‌تر و سازگاری با محیط را با نسخه‌های ویژه تولید شده از ترکیبات مختلف الاستومر و PTFE ارائه دهد.
| مواد | |
|---|---|
| کد | |
| فشار (حداکثر) بار | |
| دما (حداکثر) درجه سانتیگراد | |
| سرعت لغزش (حداکثر) - متر بر ثانیه |

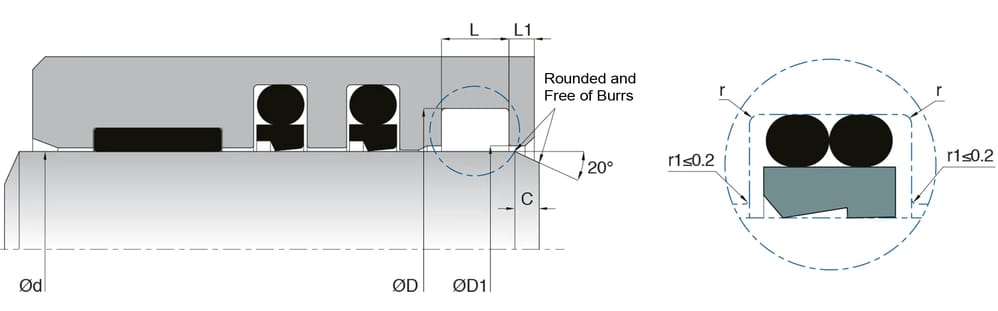

| مدل | d (f8) | D (H9) | D1 (+0.2/-0) | L (+0.2/-0) | L (+0.2/-0) | r | C | MATERIAL | Kastaş CODE | فایل |
|---|---|---|---|---|---|---|---|---|---|---|
| K705-025 | 25 | 32.6 | 26 | 4.2 | 4 | 0.4 | 3 | PT6003 | 10025281 | — |
| K705-028 | 28 | 35.6 | 29 | 4.2 | 4 | 0.4 | 3 | PT6003 | 10025283 | — |
| K705-030 | 30 | 37.6 | 31 | 4.2 | 4 | 0.4 | 3 | PT6003 | 10025285 | — |
| K705-032 | 32 | 39.6 | 33 | 4.2 | 4 | 0.4 | 3 | PT6003 | 10025286 | — |
| K705-035 | 35 | 42.6 | 36 | 4.2 | 4 | 0.4 | 3 | PT6003 | 10025288 | — |
| K705-036 | 36 | 43.6 | 37 | 4.2 | 4 | 0.4 | 3 | PT6003 | 10025290 | — |
| K705-040 | 40 | 48.8 | 41.5 | 6.3 | 4 | 1.2 | 3 | PT6003 | 10025292 | — |
| K705-045 | 45 | 53.8 | 46.5 | 6.3 | 4 | 1.2 | 3 | PT6003 | 10025293 | — |
| K705-050 | 50 | 58.8 | 51.5 | 6.3 | 4 | 1.2 | 3 | PT6003 | 10025295 | — |
| K705-055 | 55 | 63.8 | 56.5 | 6.3 | 4 | 1.2 | 4 | PT6003 | 10025297 | — |
| K705-056 | 56 | 64.8 | 57.5 | 6.3 | 4 | 1.2 | 4 | PT6003 | 10025298 | — |
| K705-060 | 60 | 68.8 | 61.5 | 6.3 | 4 | 1.2 | 4 | PT6003 | 10025301 | — |
| K705-063 | 63 | 71.8 | 64.5 | 6.3 | 4 | 1.2 | 4 | PT6003 | 10025305 | — |
| K705-065 | 65 | 73.8 | 66.5 | 6.3 | 4 | 1.2 | 4 | PT6003 | 10025308 | — |
| K705-070 | 70 | 82.2 | 72 | 8.1 | 6 | 2 | 4 | PT6003 | 10025309 | — |
| K705-075 | 75 | 87.2 | 77 | 8.1 | 6 | 2 | 4 | PT6003 | 10025312 | — |
| K705-080 | 80 | 92.2 | 82 | 8.1 | 6 | 2 | 4 | PT6003 | 10025313 | — |
| K705-085 | 85 | 97.2 | 87 | 8.1 | 6 | 2 | 4 | PT6003 | 10025315 | — |
| K705-090 | 90 | 102.2 | 92 | 8.1 | 6 | 2 | 4 | PT6003 | 10025317 | — |
| K705-100 | 100 | 112.2 | 102 | 8.1 | 6 | 2 | 4 | PT6003 | 10025319 | — |
| K705-105 | 105 | 117.2 | 107 | 8.1 | 6 | 2 | 4 | PT6003 | 10025321 | — |
| K705-110 | 110 | 122.2 | 112 | 8.1 | 6 | 2 | 4 | PT6003 | 10025322 | — |
| K705-115 | 115 | 127.2 | 117 | 8.1 | 6 | 2 | 4 | PT6003 | 10025325 | — |
| K705-120 | 120 | 132.1 | 122 | 8.1 | 6 | 2 | 4 | PT6003 | 10025326 | — |
| K705-125 | 125 | 137.2 | 127 | 8.1 | 6 | 2 | 6 | PT6003 | 10025328 | — |
| K705-130 | 130 | 142.2 | 132 | 8.1 | 6 | 2 | 6 | PT6003 | 10025331 | — |
| K705-135 | 135 | 147.2 | 137 | 8.1 | 6 | 2 | 6 | PT6003 | 10025332 | — |
| K705-140 | 140 | 156 | 142 | 11.5 | 6 | 2 | 6 | PT6003 | 10025333 | — |
| K705-150 | 150 | 166 | 152 | 11.5 | 6 | 2 | 6 | PT6003 | 10025335 | — |
| K705-155 | 155 | 171 | 157 | 11.5 | 6 | 2 | 6 | PT6003 | 10025337 | — |
| K705-160 | 160 | 176 | 162 | 11.5 | 6 | 2 | 6 | PT6003 | 10025338 | — |
| K705-170 | 170 | 186 | 172 | 11.5 | 6 | 2 | 6 | PT6003 | 10025340 | — |
| K705-175 | 175 | 191 | 177 | 11.5 | 6 | 2 | 6 | PT6003 | 10025342 | — |
| K705-180 | 180 | 196 | 182 | 11.5 | 6 | 2 | 6 | PT6003 | 10025345 | — |
| K705-190 | 190 | 206 | 192 | 11.5 | 6 | 2 | 6 | PT6003 | 10025348 | — |
| K705-200 | 200 | 216 | 202 | 11.5 | 6 | 2 | 6 | PT6003 | 10025349 | — |
| K705-210 | 210 | 226 | 212 | 11.5 | 6 | 2 | 6 | PT6003 | 10025354 | — |
| K705-220 | 220 | 236 | 222 | 11.5 | 6 | 2 | 6 | PT6003 | 10025356 | — |
| K705-230 | 230 | 246 | 232 | 11.5 | 6 | 2 | 8 | PT6003 | 10025359 | — |
| K705-240 | 240 | 256 | 242 | 11.5 | 6 | 2 | 8 | PT6003 | 10025360 | — |
| K705-250 | 250 | 266 | 252 | 11.5 | 6 | 2 | 8 | PT6003 | 10025363 | — |
| K705-260 | 260 | 276 | 262 | 11.5 | 6 | 2 | 8 | PT6003 | 10025365 | — |
| K705-265/1 | 265 | 281 | 267 | 11.5 | 6 | 2 | 8 | PT6003 | 10025367 | — |
| K705-270 | 270 | 286 | 272 | 11.5 | 6 | 2 | 8 | PT6003 | 10025369 | — |
| K705-275 | 275 | 291 | 277 | 11.5 | 6 | 2 | 8 | PT6003 | 10025370 | — |
| K705-280 | 280 | 296 | 282 | 11.5 | 6 | 2 | 8 | PT6003 | 10025371 | — |
| K705-290 | 290 | 306 | 292 | 11.5 | 6 | 2 | 8 | PT6003 | 10025372 | — |
| K705-300 | 300 | 316 | 302 | 11.5 | 6 | 2 | 8 | PT6003 | 10025375 | — |
| K705-310 | 310 | 326 | 312 | 11.5 | 6 | 2 | 8 | PT6003 | 10025376 | — |
| K705-320 | 320 | 336 | 322 | 11.5 | 6 | 2 | 8 | PT6003 | 10025377 | — |
| K705-330 | 330 | 346 | 332 | 11.5 | 6 | 2 | 8 | PT6003 | 10025381 | — |
| K705-340 | 340 | 356 | 342 | 11.5 | 6 | 2 | 8 | PT6003 | 10025384 | — |
| K705-355 | 355 | 371 | 357 | 11.5 | 6 | 2 | 8 | PT6003 | 10025385 | — |
| K705-360 | 360 | 376 | 362 | 11.5 | 6 | 2 | 8 | PT6003 | 10025386 | — |
| K705-370 | 370 | 386 | 372 | 11.5 | 6 | 2 | 8 | PT6003 | 10025387 | — |
| K705-375 | 375 | 391 | 377 | 11.5 | 6 | 2 | 8 | PT6003 | 10025388 | — |
| K705-380 | 380 | 396 | 382 | 11.5 | 6 | 2 | 8 | PT6003 | 10025389 | — |
| K705-390 | 390 | 406 | 392 | 11.5 | 6 | 2 | 8 | PT6003 | 10025390 | — |
| K705-415 | 415 | 431 | 417 | 11.5 | 6 | 2 | 8 | PT6003 | 10025395 | — |
| K705-430 | 430 | 454 | 432.5 | 15.5 | 9 | 2 | 8 | PT6003 | 10025397 | — |
| K705-470 | 470 | 494 | 472.5 | 15.5 | 9 | 2 | 8 | PT6003 | 10025400 | — |
| K705-490/1 | 490 | 514 | 492.5 | 15.5 | 9 | 2 | 8 | PT6003 | 10025403 | — |
| K705-500 | 500 | 524 | 502.5 | 15.5 | 9 | 2 | 8 | PT6003 | 10025405 | — |
| K705-570 | 570 | 594 | 572.5 | 15.5 | 9 | 2 | 8 | PT6003 | 10025408 | — |
ردیفی با این مشخصات پیدا نشد. فیلترها را تغییر دهید.
